GraphRAG

Graph-Enhanced Retrieval-Augmented Generation

🎧

Listen to this Explanation

Enjoy a clear, AI-narrated audio version (Solo Mode).

Overview

GraphRAG is an advanced question-answering system that combines the power of graph-based knowledge representation with retrieval-augmented generation. It processes input documents to create a rich knowledge graph, which is then used to enhance the retrieval and generation of answers to user queries. The system leverages natural language processing, machine learning, and graph theory to provide more accurate and contextually relevant responses.

"GraphRAG represents knowledge as an interconnected graph, enabling intelligent traversal of information and better preservation of relationships between concepts."

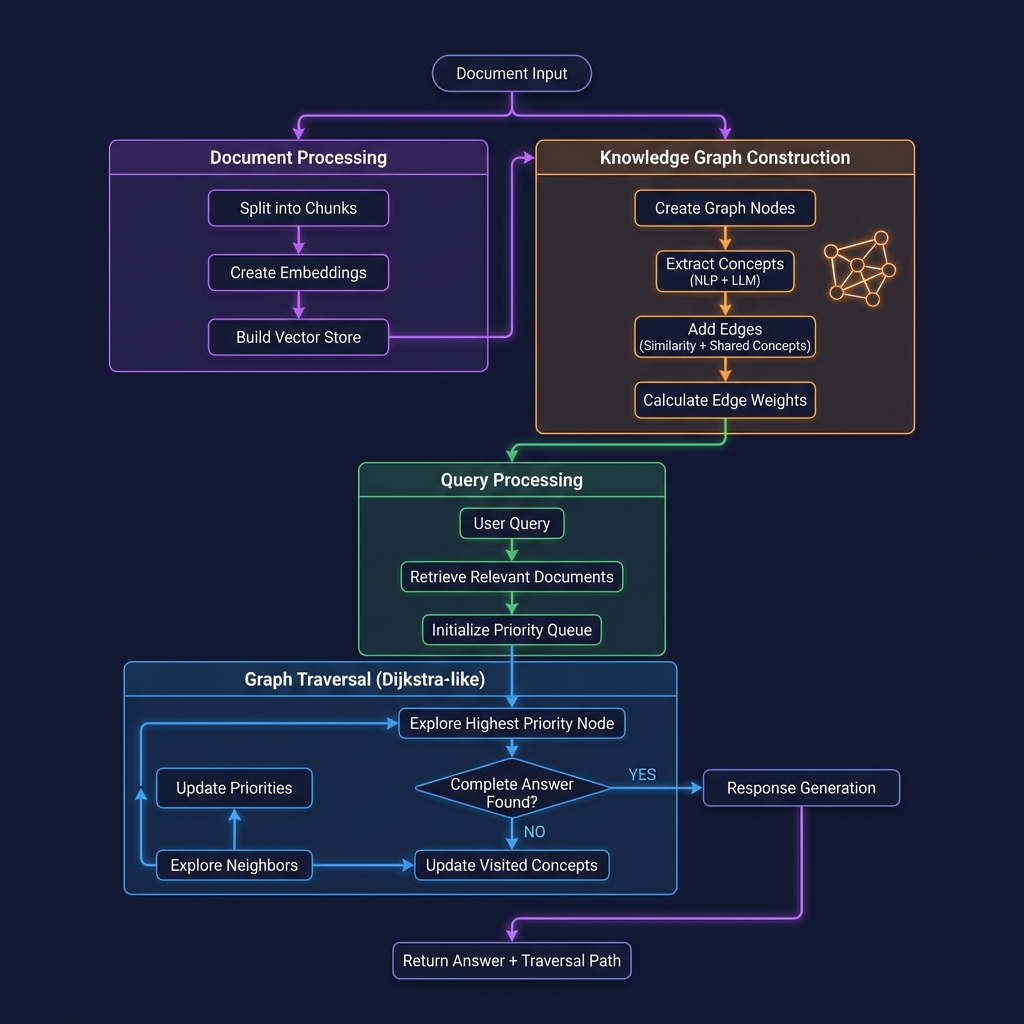

GraphRAG Process Flowchart

Flowchart showing the GraphRAG knowledge graph construction and traversal process

Motivation

Traditional retrieval-augmented generation systems often struggle with maintaining context over long documents and making connections between related pieces of information. GraphRAG addresses these limitations by:

Interconnected Knowledge

Graph representation preserves relationships between concepts

Intelligent Traversal

Smart navigation through information during queries

Visual Representation

Shows how information is connected and accessed

Key Components

DocumentProcessor

Handles the initial processing of input documents, splitting them into chunks, creating embeddings, and building a vector store for efficient similarity search.

KnowledgeGraph

Constructs a graph representation where nodes represent text chunks and edges represent relationships between them. Uses NLP and LLMs to extract concepts and calculate edge weights.

QueryEngine

Manages the query answering process using a Dijkstra-like algorithm to traverse the knowledge graph, prioritizing nodes by connection strength and exploring until a complete answer is found.

Visualizer

Creates visual representations of the graph and traversal path, showing how the system arrived at its answer with highlighted nodes and edges.

GraphRAG Process Flow

1 Document Processing

Split documents into manageable chunks
Create embeddings for each chunk using language model
Build vector store (FAISS) for efficient similarity search

2 Knowledge Graph Construction

Create graph nodes for each text chunk
Extract concepts using spaCy NER + LLM
Lemmatize concepts for better matching
Add edges based on semantic similarity + shared concepts
Calculate edge weights: α × similarity + β × normalized_shared_concepts

3 Query Processing (Dijkstra-like Algorithm)

Embed query and retrieve relevant documents
Initialize priority queue with most relevant nodes
Explore nodes in order of priority (connection strength)
For each node: add to context → check if answer is complete
If incomplete: update visited concepts → explore neighbors
Continue until complete answer or queue exhausted

4 Visualization

Nodes represent text chunks with concepts
Edge colors indicate relationship strength (weights)
Traversal path highlighted with curved arrows
Start (green) and end (red) nodes distinctly colored

Implementation Example

# GraphRAG System Usage
class GraphRAG:
    def __init__(self):
        self.llm = ChatOpenAI(model="gpt-4o-mini")
        self.embedding_model = OpenAIEmbeddings()
        self.document_processor = DocumentProcessor()
        self.knowledge_graph = KnowledgeGraph()
        self.query_engine = None
        self.visualizer = Visualizer()

    def process_documents(self, documents):
        # Split, embed, and build knowledge graph
        splits, vector_store = self.document_processor.process_documents(documents)
        self.knowledge_graph.build_graph(splits, self.llm, self.embedding_model)
        self.query_engine = QueryEngine(vector_store, self.knowledge_graph, self.llm)

    def query(self, query: str):
        # Traverse graph and get answer with visualization
        response, traversal_path, filtered_content = self.query_engine.query(query)
        self.visualizer.visualize_traversal(self.knowledge_graph.graph, traversal_path)
        return response

# Usage
graph_rag = GraphRAG()
graph_rag.process_documents(documents)
response = graph_rag.query("What is the main cause of climate change?")

Complete Implementation Tutorial

Step-by-step code walkthrough with all components

View Full Tutorial

Benefits of GraphRAG

Improved Context Awareness

Graph representation maintains better context and connections across document parts.

Enhanced Retrieval

Graph structure enables intelligent retrieval beyond simple keyword matching.

Explainable Results

Visualization shows how the system arrived at its answer, improving transparency.

Flexible Knowledge Representation

Graph structure easily incorporates new information and relationships.

Efficient Information Traversal

Weighted edges prioritize the most relevant information pathways.

Relationship Preservation

Maintains semantic relationships between concepts that traditional RAG loses.

Ideal Use Cases

Long Documents

When context needs to be maintained across large documents with many interconnected topics.

Complex Relationships

Domains with intricate concept relationships like legal, medical, or scientific documents.

Explainable AI

When transparency in decision-making is required and users need to understand the reasoning.
